GORE^® Cable Protection Systems for Civil Aircraft

Commercial aircraft OEMs and system suppliers want more protection for copper wires and fiber optics connected to avionics. But, they also want to package these wires and cables in thinner, lighter materials to save weight in aircraft.

Built with materials that are extremely resistant to crushing and abrasion, GORE Cable Protection Systems provide some of the highest levels of durability available today. We designed them for packaging GORE® High Speed Data Cables or other industry alternatives. Our cable protection systems can easily handle extreme flight conditions, plus corrosive chemicals and fluids typically used in the industry.

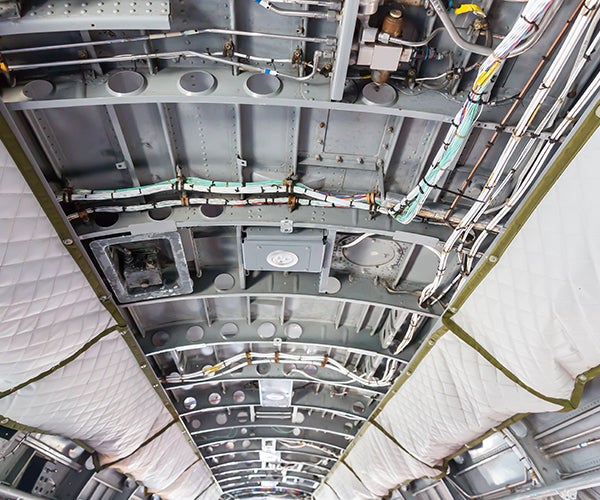

Copper and fiber can float freely within our cable protection systems without getting damaged during complex routing in cable runs and sharp edges in airframes. They’re a great deal thinner and lighter with greater flexibility and tight bend-limiting capability, so installers can quickly and easily route cables without exceeding the minimum bend radius. Our jacket systems also contribute to weight savings and allow more space to install other critical airborne systems.

Unmatched by alternative jacket designs, GORE Cable Protection Systems offer exceptional features for packaging copper wires and fiber optics, including:

• crush- and abrasion-resistant material
• chemically inert material
• thinner, lighter, highly flexible design

These jacket systems bring a handful of benefits to system architects and engineers, ensuring the best possible protection against harsh maintenance and operational conditions, like:

• proven superior levels of durability
• allow copper and fiber to move freely inside without damage or failure
• quick, easy routing and tighter bending without exceeding MBR
• contribute to valuable aircraft weight savings

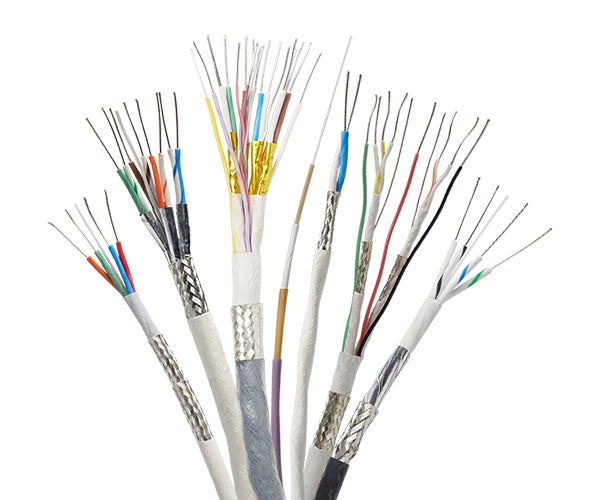

• designed for packaging GORE High Speed Data Cables or alternatives
• compatible with M85049/88 connector backshells, adaptors and similar banding platform backshells

Get termination instructions with detailed step-by-step guidance for our cable protection systems with these connector backshells and adaptors.

These values demonstrate the mechanical and environmental performance of GORE Cable Protection Systems for civil aircraft. Download our data sheet for more cable characteristics, qualifications and part numbers. Also, fill out a short form for instant access to drawings.

DATA SHEET DRAWINGS

Package your high data rate copper wires and fiber optics with GORE Cable Protection Systems for ultimate protection, quick installation, weight savings and less maintenance. If you’re ready to purchase now, contact a global distributor for in-stock availability.

Or, call us to learn more about this product with our full line of high-speed data cables and to discuss your precise application needs.
