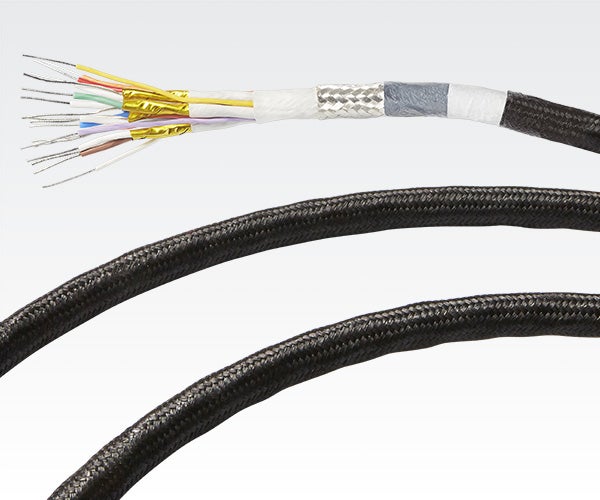

GORE^® Abrasion Resistant Cable Jacket for Defense Land Systems

Military standards now require high-speed copper cables connected to vectronics to meet new, more stringent durability requirements. But, adding more durability often includes thicker, heaver cable materials that can weigh vehicles down. Plus, bulky cables can be stiff, inflexible and hard to route in narrow pathways, especially in seats.

Gore offers a true, one-of-a-kind jacket for packaging high data rate cables that meets both new and existing standards without sacrificing size, weight or signal transmission performance.

GORE Abrasion Resistant Cable Jacket features a revolutionary fluoropolymer that meets EN3475-503 requirements. With our durable jacket, you no longer have to use additional protective sleeving now required for copper wires installed in vehicle seats.

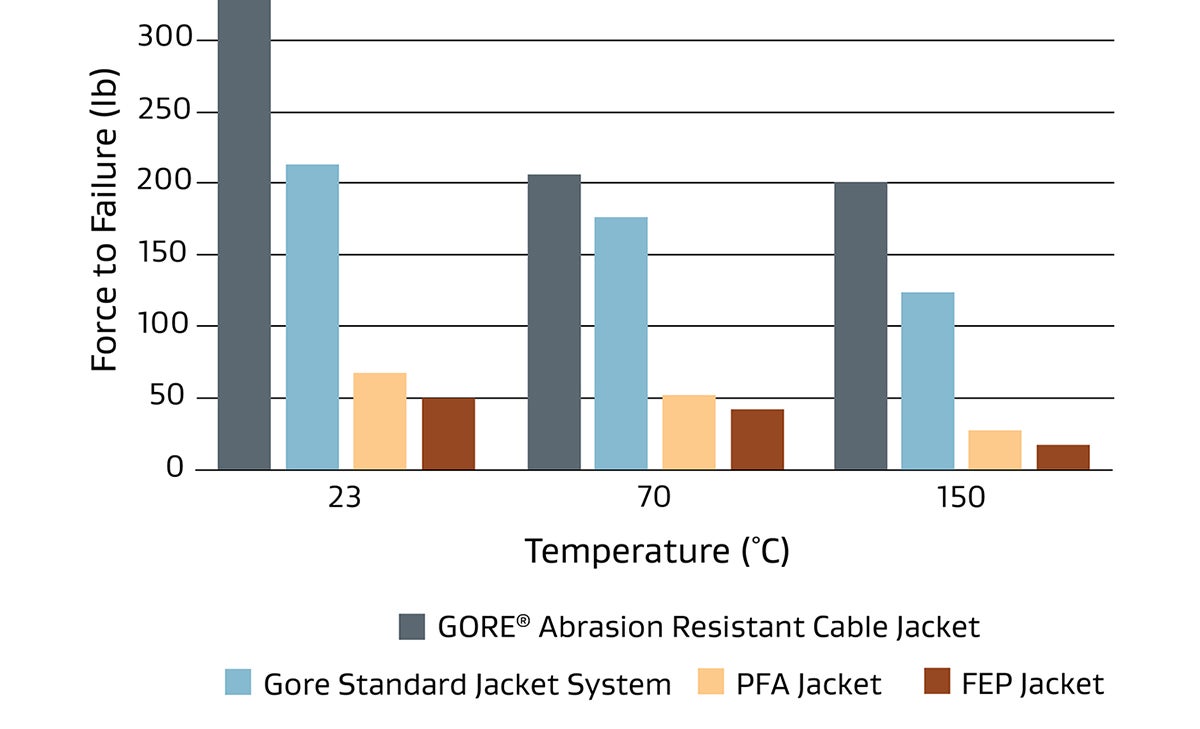

Using SAE AS4373™, Method 703, we compared our 100-ohm quadrax cables wrapped with our abrasion-resistant jacket against alternatives. As we expected, the results were undeniable! Our rugged cable jacket drastically outperformed PFA and FEP materials for superior cut-through resistance at high temperatures without cracking, splitting or breaking.

Another bonus is that our state-of-the-art materials technology is thinner, lighter weight and more flexible with tighter bendability than commonly used materials. Maintainers will find that routing copper wires and cables packaged with our jacket improves installation in tight configurations.

Outperforming common industry materials, GORE Abrasion Resistant Cable Jacket offers added features for packaging copper wires, including:

• revolutionary fluoropolymer fiber material
• abrasion- and cut-through resistant material
• chemically inert material
• highly flexible, thinner, lighter design

Our pioneering cable Jacket provides more benefits to system architects and engineers for best-in-class protection against typical land and vehicle conditions, like:

• meets strict EN3475 and SAE AS4373™ durability requirements
• superior resistance against high temps, abrasion, cut-through and more
• eliminates protective sleeving required for copper cables
• reliably transmits high-speed data and video
• contributes to valuable vehicle weight savings
• easier, faster routing because of more flexibility and tighter bending

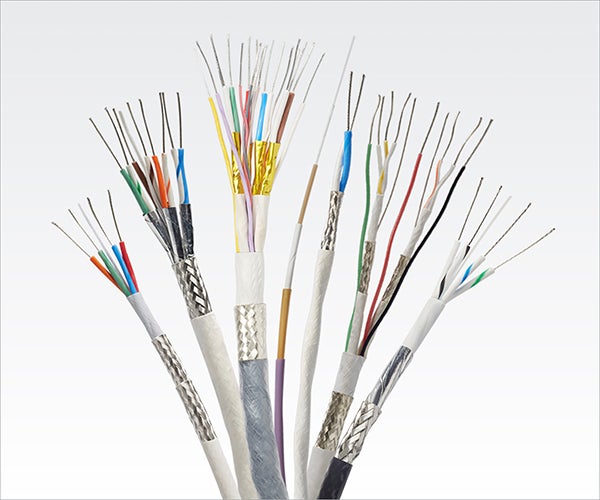

• ideal for packaging GORE® High Speed Data Cables or industry alternatives

These values demonstrate the electrical, mechanical and environmental performance of GORE® HDMI Cables, 2.0 version packaged with GORE Abrasion Resistant Cable Jacket for defense land systems. Download our data sheet for more cable characteristics, qualifications and part number.

DATA SHEET

Solve typical installation and mission challenges with GORE Abrasion Resistant Cable Jacket, promising all-around lifetime protection for high-speed copper cables supporting the latest protocols, like HDMI and more. When ready, you can purchase our jacket through a trusted distributor.

Or, give us a call today to learn how our state-of-the-art jacket wrapped around our portfolio of high-speed copper cables can benefit your application.

PURCHASE CONTACT US
